With Enua's Wallmount, you can quickly and safely create new charging points – whether in existing buildings, new buildings or commercial buildings. You use the same Wallmount for all installations, regardless of whether you are installing in a regular house, apartment building or commercial building.
Our tests conducted by an independent electrician show that our wall mount and charging station has the fastest installation time on the market. This includes configuration and commissioning of the charging station.

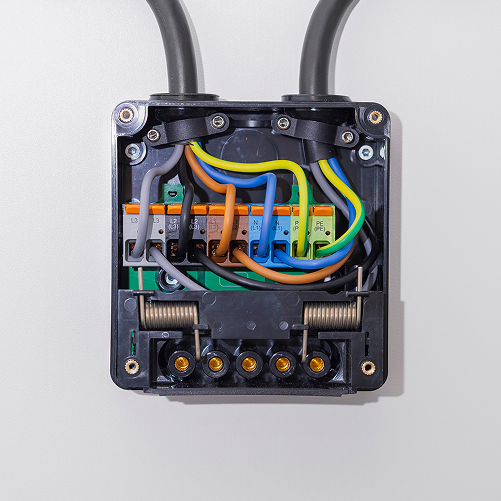

Inside you will find large and powerful connection terminals that are dimensioned for over 43kW of power, these ensure a quick installation and provide the option of direct connection.
Make the space ready for charging without the need to install a charging station. Once the Wallmount is installed, it can stand freely without the need for additional protection. When you need it, you can easily buy a charging station and install it yourself without the need for the help of an electrician.
Article number
27003
Material
PC/ASA, PA6
Weight
0,70 kg
Dimensions (mm)
H: 143 x W: 135 x D: 77
Protection grade
UV resistant
IP45 enclosure rating
IK10 impact protection
UL94-V0 flame resistance
Mounting
4 mounting points - 5mm
Installation
Daisy-chain Enua Wallmount for a streamlined installation, with support for an unlimited number of Wallmounts in a row from each circuit breaker — supporting up to 63A current flow through a Wallmount. All national and local requirements for low voltage installations must be followed during installation.
Connection
Wire diameter: 12-20mm when using Enua’s cable grommet.
Handles both solid core and stranded conductors.
No requirement for use of ferrules.
Supports TN, IT and TT grid. 1-phase and 3-phase connection (PE+N+L1/L2/L3).
5 cable entries.

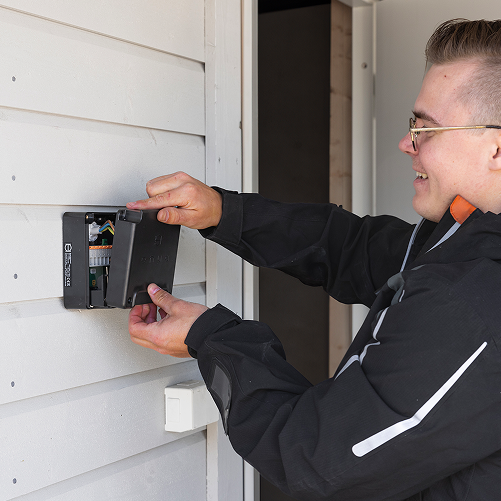

Where other EV chargers have a backplate, Enua has Wallmount – a smart wall mount that installs and configures in under six minutes. All you need is a T20 torx tool.
The cables are hidden behind a protective cover, making it completely safe for the end-user to click the charging station into place.
